About this product

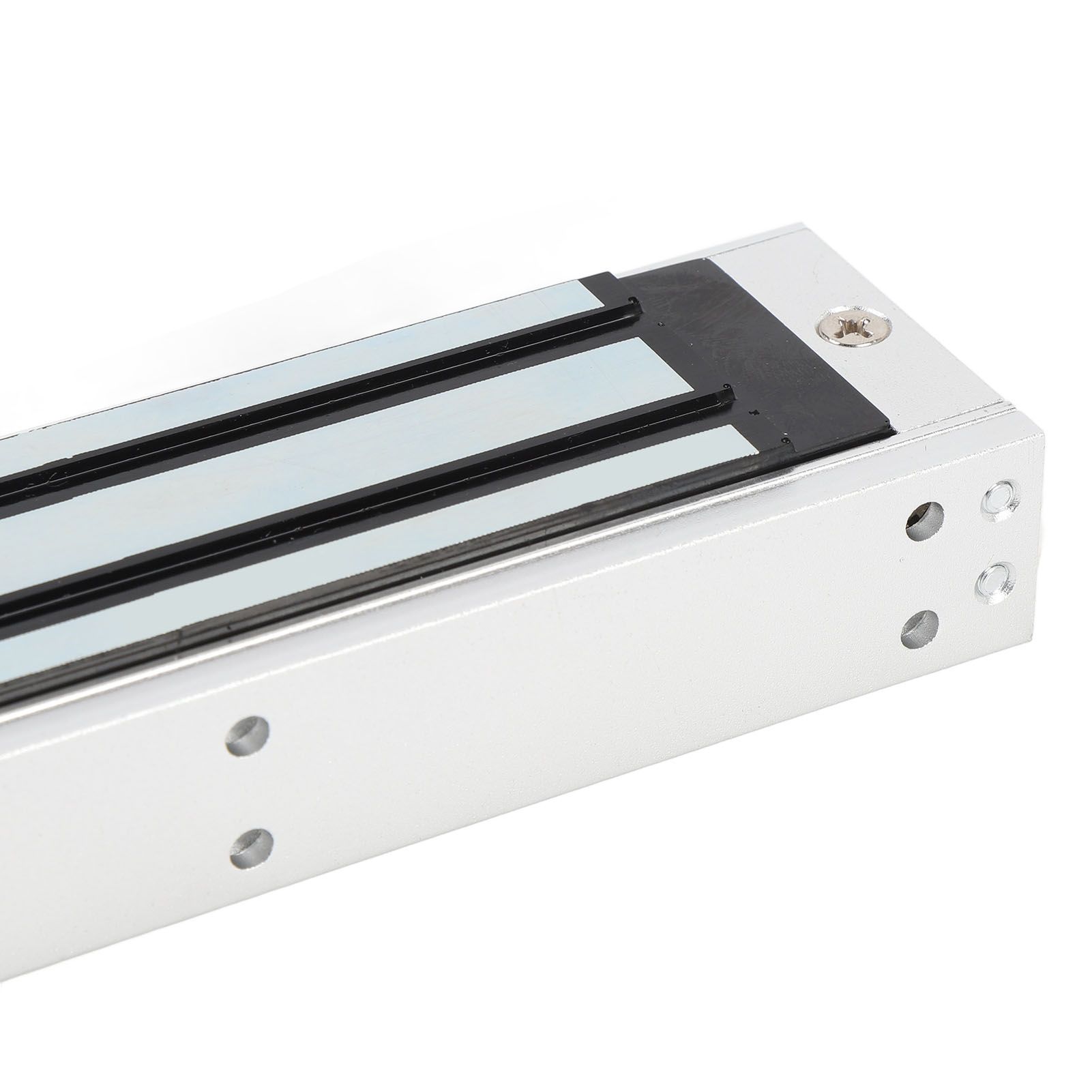

1、LED Light: The electric magnetic lock is equipped with LED light, red when powered on, green when locked, also with built in reverse current device and sandblasted technology for a robust and refined appearance. 2、Strong Holding Force: The magnetic lock is capable of withstanding a holding force of 600lbs, ideal for installation on large metal doors or areas requiring high security. 3、Versatile Use: The door lock operates at a voltage of 12V and typically powered by a DC power supply, meeting the voltage requirements of most access control systems. 4、Fail Safe NC Mode: The lock remains in the closed state under normal conditions and will unlock immediately in the event of a power outage. Helps to facilitate quick escape in emergencies, such as fire, thus enhancing safety. 5、Sturdy Material: The electromagnetic lock is constructed from aluminum alloy material, sturdy and robust, and resistant to wear, erosion and oxidation, ideal for long term use.

Specification

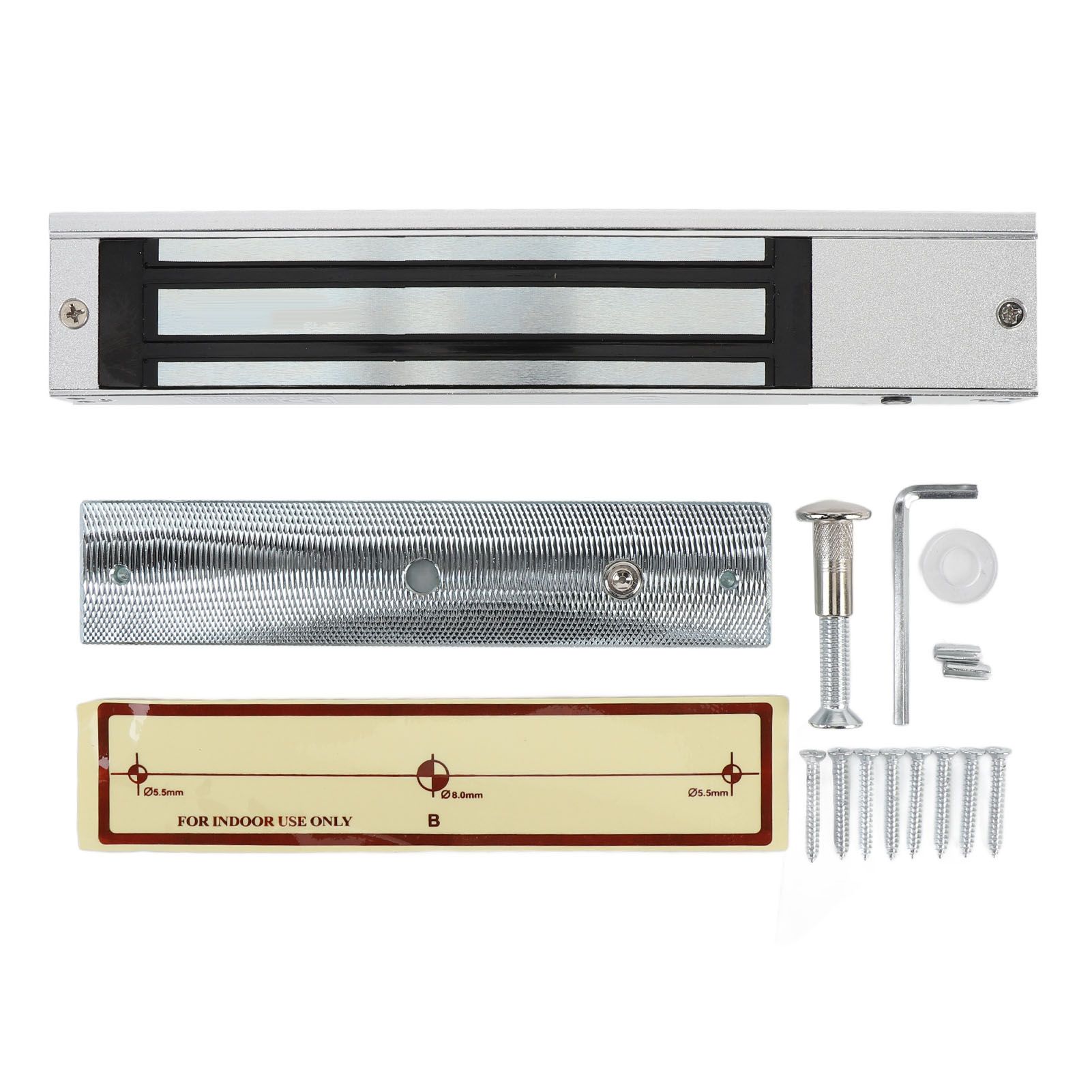

Item Type: Electromagnetic Lock

Material: Aluminum Alloy

Mode: NC, power on to lock, power off to unlock, signal feedback function

Lock Body Size: Approx. 250 x 47 x 25mm / 9.8 x 1.9 x 1in

Suction Plate Size: Approx. 180 x 38 x 12mm / 7.1 x 1.5 x 0.5in

Maximum Holding Force: Approx. 280kg/ 600lbs ±15% (Linear Holding Force)
